HYDROMAX新鸿油泵_同步分流马达_DFMN-302A

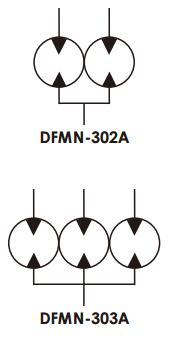

SCHEMATIC SYMBOL

ORDER CODES

Model Name	DFMN-3
Stations	02A 2 stations
	03A 3 stations
	04A 4 stations
	05A 5 stations
	06A 6 stations
	07A 7 stations
Flow Rate	4,6,8,11,13,14,17,19,23,25,28,30,35
Functional Type	M synchronous flow divider MR with relief valve

SPECIFICATIONS

Model	Accurate	Pressure (kgf/cm2)	Speed	(r.p.m)
	Displacement				Port Size	(PT)
	Capacity
	(cc/rev)	normal	Loaded	Unloaded
DFMN-30*A-4M	4	210	1000	2000	3/4″	1/2″
DFMN-30*A-6M	6	210	1000	2000	3/4″	1/2″
DFMN-30*A-8M	8.4	210	1000	2000	3/4″	1/2″
DFMN-30*A-11M	11	210	1000	2000	3/4″	1/2″
DFMN-30*A-13M	13	210	1000	2000	3/4″	1/2″
DFMN-30*A-14M	14.3	210	1000	2000	3/4″	1/2″
DFMN-30*A-17M	16.5	210	1000	2000	3/4″	1/2″
DFMN-30*A-19M	19.2	210	1000	2000	3/4″	1/2″
DFMN-30*A-23M	23	210	1000	2000	3/4″	1/2″
DFMN-30*A-25M	25	210	1000	2000	3/4″	3/4″
DFMN-30*A-28M	28	210	1000	2000	3/4″	3/4″
DFMN-30*A-30M	30	210	1000	2000	3/4″	3/4″
DFMN-30*A-35M	35	210	1000	2000	3/4″	3/4″

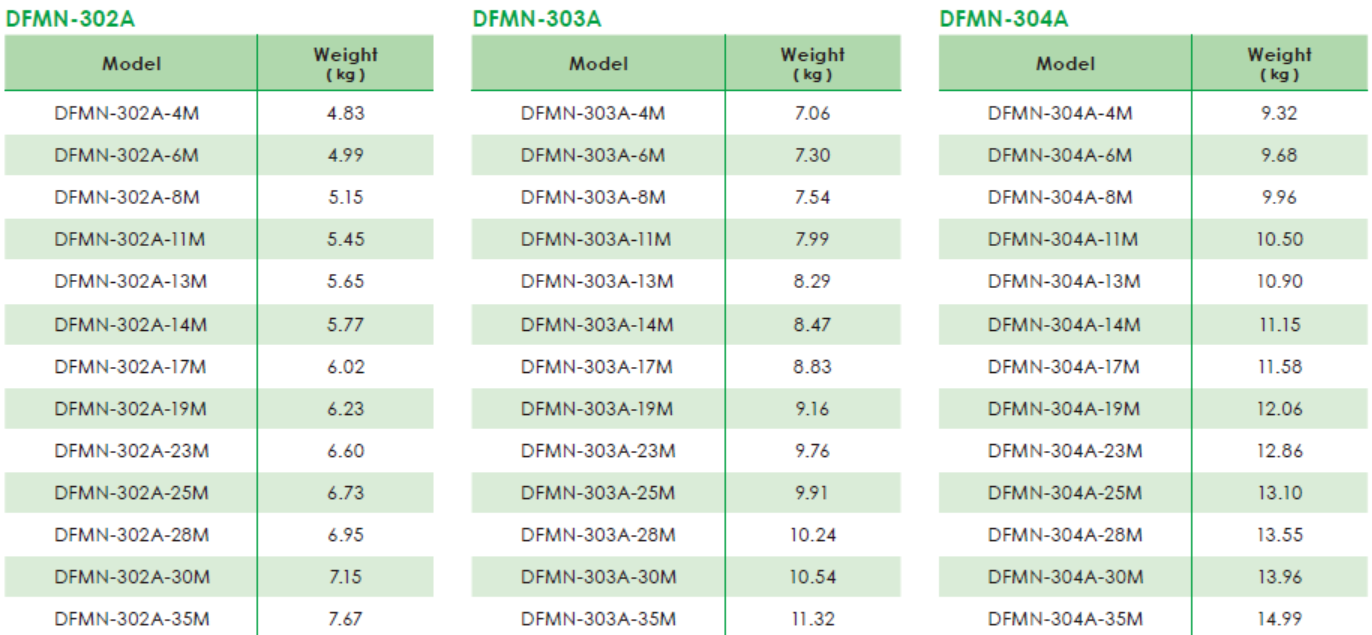

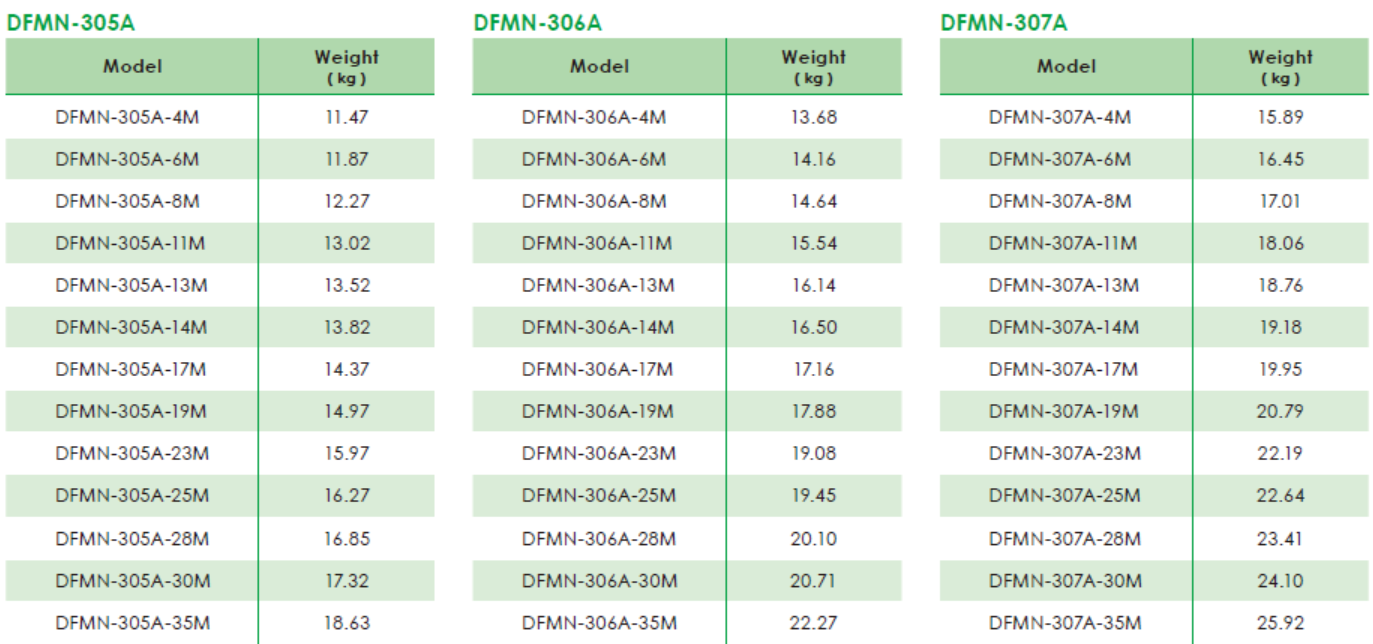

MODEL WEIGHT

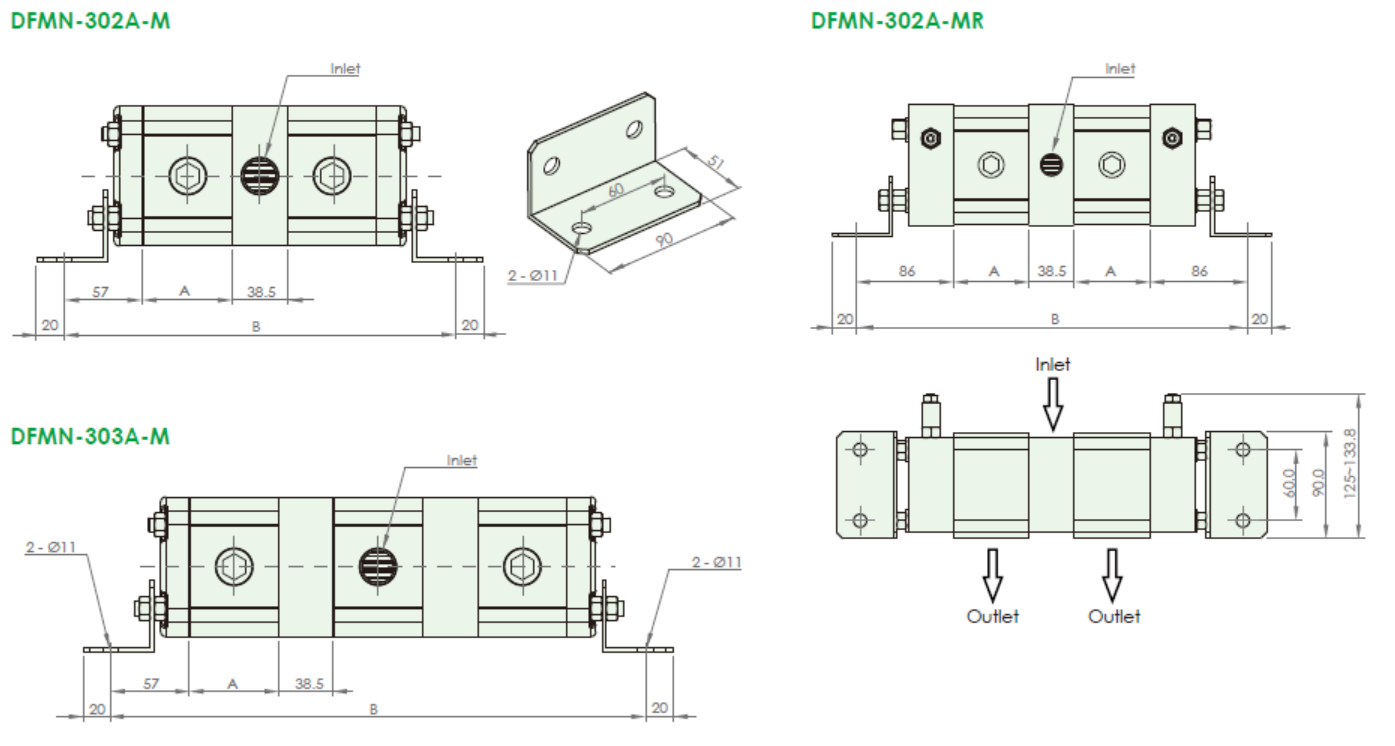

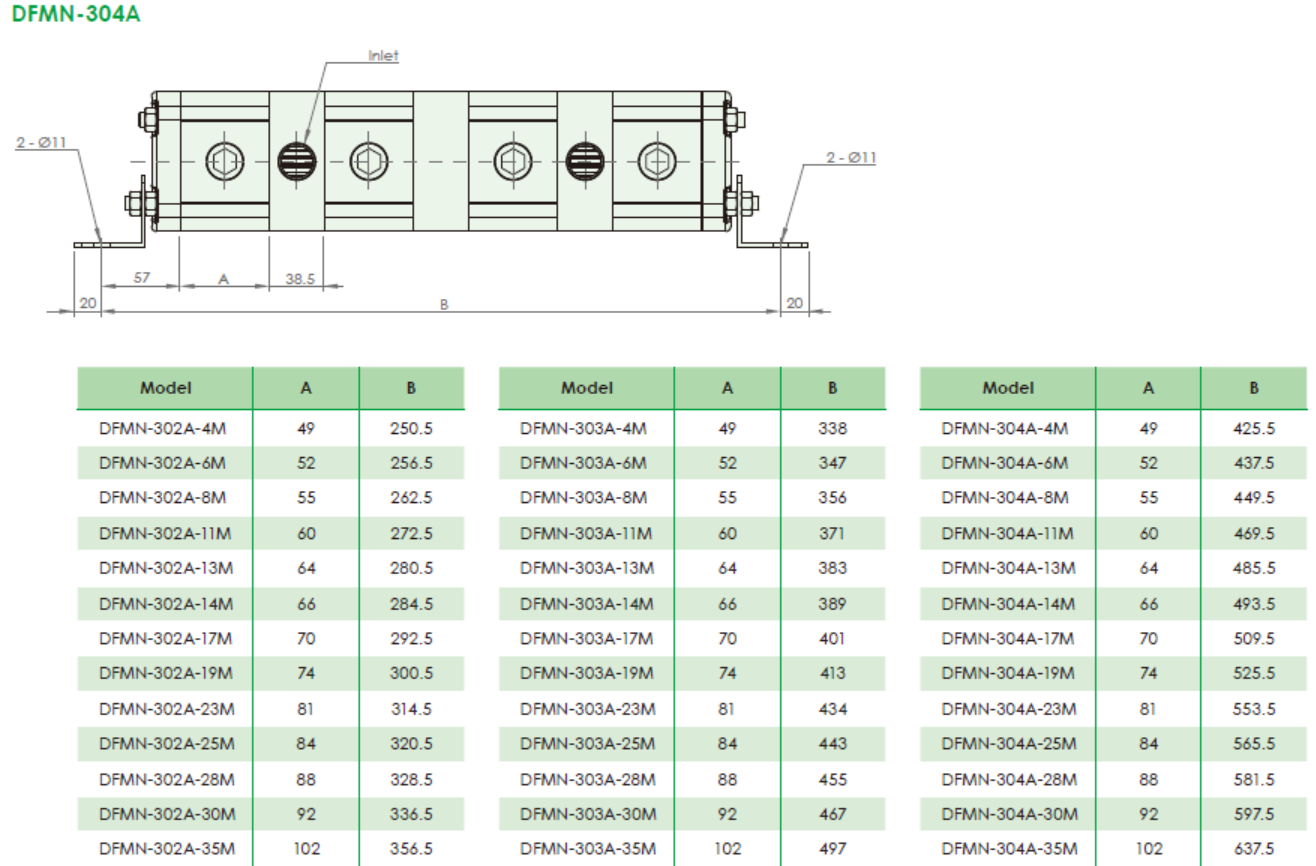

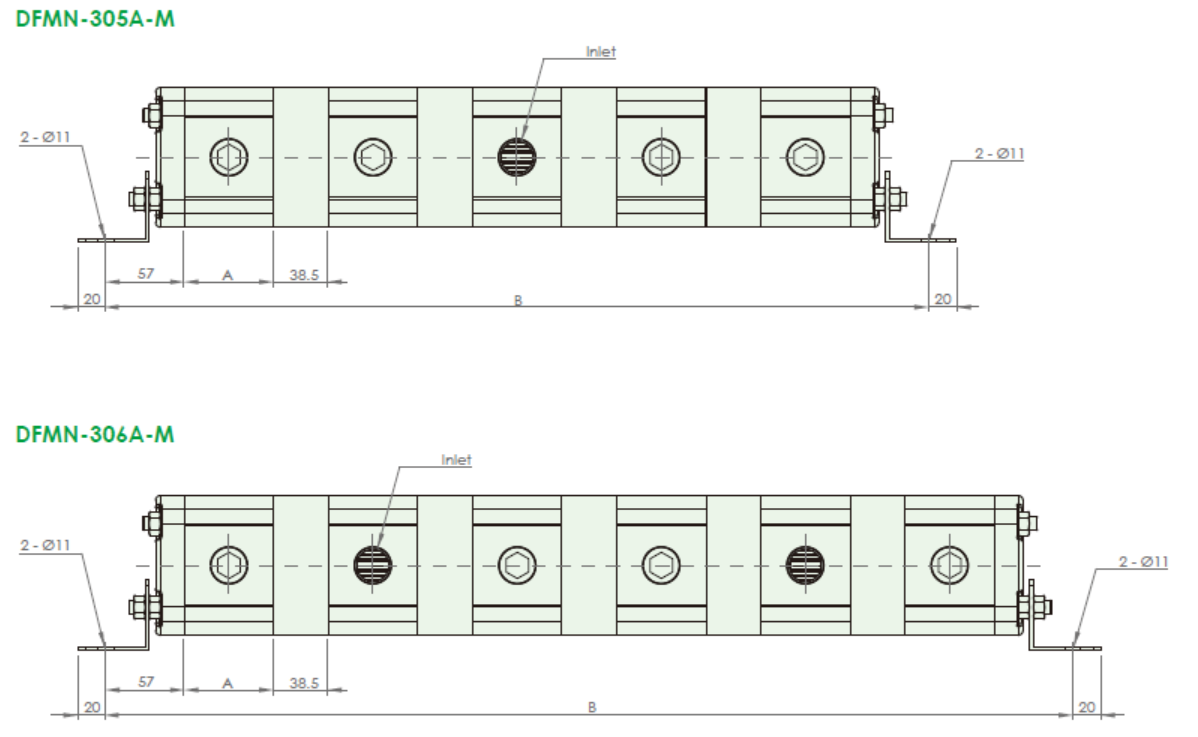

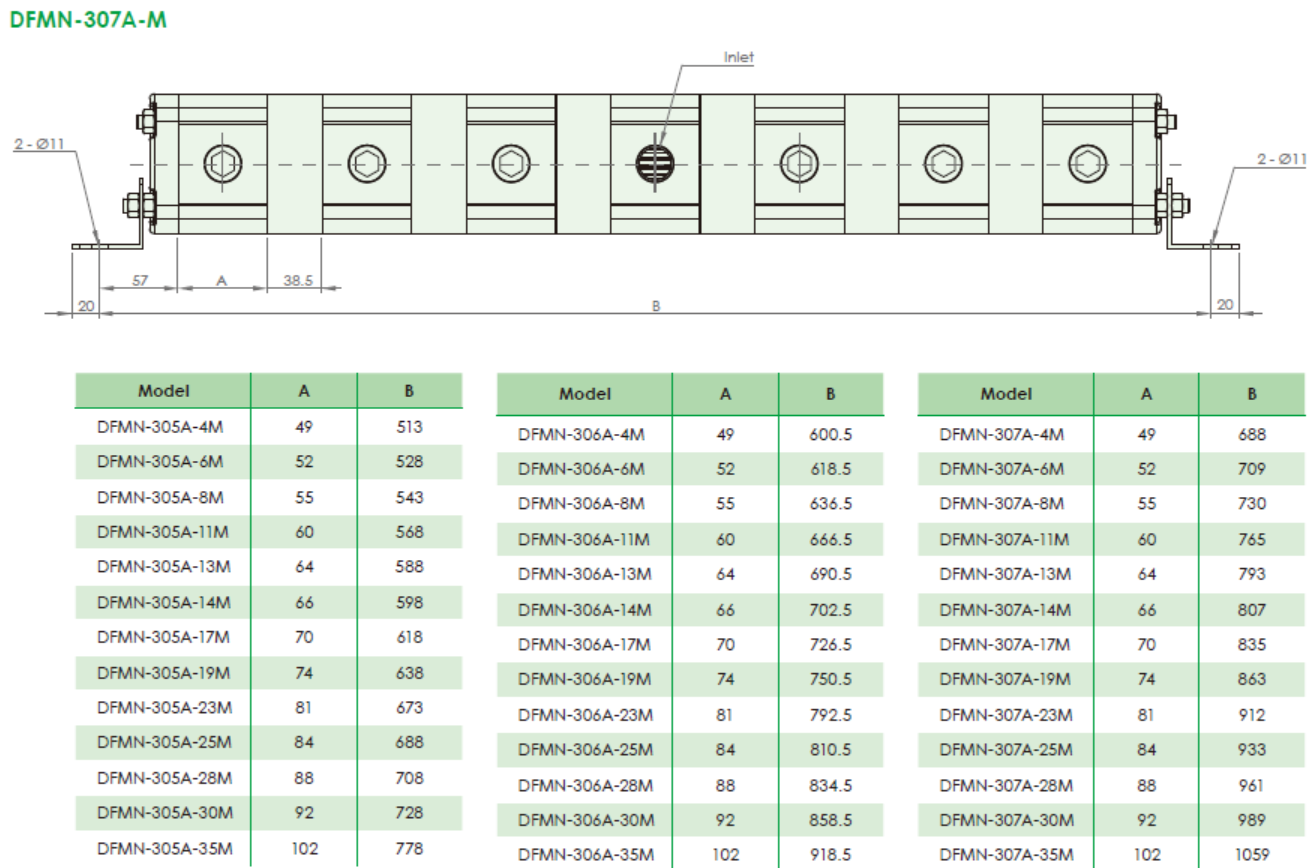

DIMENSIONS(UNIT:mm)
